Project 1: Make a Toy Venus

Project 1.1: A RISC-V Assembler

Computer Architecture I ShanghaiTech University

Project 1.1 Project 1.2

IMPORTANT INFO - PLEASE READ

The projects are part of your design project worth 2 credit points. As such they run in parallel to the actual course. So be aware that the due date for project and homework might be very close to each other! Start early and do not procrastinate.

Contents

  1. Goal of Project 1
  2. Introduction to Project 1.1
  3. Background of The Instruction Set
  4. Getting Started ( Step 0, Step 1, Step 2, Step 3, Step 4 )
  5. Putting It All Together
  6. Testing
  7. Running the Assembler
  8. Notices on Grading
  9. How many lines of code I need to write?
  10. Submission
  11. Autolab Results

Goal of Project 1 [<<] [<] [>]

In Project 1, you will make a simple toy Venus, consisting of both assembler and emulator. If you are not yet familiar with Venus, try it out now. At the end of this project, you will understand the C programming language and the underlying execution of RISC-V assembly.

Introduction to Project 1.1 [<<] [<] [>]

Firstly, let's make an assembler in Project 1.1. Our assembler is a simple two-pass assembler. It will keep .text and .data segment apart. The linking process is not considered.

At a high level, the functionality of our assembler can be divided as follows.

Background of The Instruction Set [<<] [<] [>]

Registers

Please consult the RISC-V Green Sheet (PDF) for register numbers, instruction opcodes, and bitwise formats. Our asembler will support all 32 registers: x0, ra, sp, gp, tp, t0-t6, s0 - s11, a0 - a7. The name x0 can be used in lieu of zero. Other register numbers (eg. x1, x2, etc.) shall be also supported. Note that floating point registers are not included in project 1.

Instructions

We will have 42 instructions 8 pseudo-instructions to assemble. The instructions are:

Instruction Type Opcode Funct3 Funct7/IMM Operation
add rd, rs1, rs2 R 0x33 0x0 0x00 R[rd] ← R[rs1] + R[rs2]
mul rd, rs1, rs2 0x0 0x01 R[rd] ← (R[rs1] * R[rs2])[31:0]
sub rd, rs1, rs2 0x0 0x20 R[rd] ← R[rs1] - R[rs2]
sll rd, rs1, rs2 0x1 0x00 R[rd] ← R[rs1] << R[rs2]
mulh rd, rs1, rs2 0x1 0x01 R[rd] ← (R[rs1] * R[rs2])[63:32]
slt rd, rs1, rs2 0x2 0x00 R[rd] ← (R[rs1] < R[rs2]) ? 1 : 0
sltu rd, rs1, rs2 0x3 0x00 R[rd] ← (U(R[rs1]) < U(R[rs2])) ? 1 : 0
xor rd, rs1, rs2 0x4 0x00 R[rd] ← R[rs1] ^ R[rs2]
div rd, rs1, rs2 0x4 0x01 R[rd] ← R[rs1] / R[rs2]
srl rd, rs1, rs2 0x5 0x00 R[rd] ← R[rs1] >> R[rs2]
sra rd, rs1, rs2 0x5 0x20 R[rd] ← R[rs1] >> R[rs2]
or rd, rs1, rs2 0x6 0x00 R[rd] ← R[rs1] | R[rs2]
rem rd, rs1, rs2 0x6 0x01 R[rd] ← (R[rs1] % R[rs2]
and rd, rs1, rs2 0x7 0x00 R[rd] ← R[rs1] & R[rs2]
lb rd, offset(rs1) I 0x03 0x0 R[rd] ← SignExt(Mem(R[rs1] + offset, byte))
lh rd, offset(rs1) 0x1 R[rd] ← SignExt(Mem(R[rs1] + offset, half))
lw rd, offset(rs1) 0x2 R[rd] ← Mem(R[rs1] + offset, word)
lbu rd, offset(rs1) 0x4 R[rd] ← U(Mem(R[rs1] + offset, byte))
lhu rd, offset(rs1) 0x5 R[rd] ← U(Mem(R[rs1] + offset, half))
addi rd, rs1, imm 0x13 0x0 R[rd] ← R[rs1] + imm
slli rd, rs1, imm 0x1 0x00 R[rd] ← R[rs1] << imm
slti rd, rs1, imm 0x2 R[rd] ← (R[rs1] < imm) ? 1 : 0
sltiu rd, rs1, imm 0x3 R[rd] ← (U(R[rs1]) < U(imm)) ? 1 : 0
xori rd, rs1, imm 0x4 R[rd] ← R[rs1] ^ imm
srli rd, rs1, imm 0x5 0x00 R[rd] ← R[rs1] >> imm
srai rd, rs1, imm 0x5 0x20 R[rd] ← R[rs1] >> imm
ori rd, rs1, imm 0x6 R[rd] ← R[rs1] | imm
andi rd, rs1, imm 0x7 R[rd] ← R[rs1] & imm
jalr rd, rs1, imm 0x67 0x0 R[rd] ← PC + 4
PCR[rs1] + imm
ecall 0x73 0x0 0x000 (Transfers control to operating system)
a0 = 1 is print value of a1 as an integer.
a0 = 4 is print the string at address a1.
a0 = 10 is exit or end of code indicator.
a0 = 11 is print value of a1 as a character.
sb rs2, offset(rs1) S 0x23 0x0 Mem(R[rs1] + offset) ← R[rs2][7:0]
sh rs2, offset(rs1) 0x1 Mem(R[rs1] + offset) ← R[rs2][15:0]
sw rs2, offset(rs1) 0x2 Mem(R[rs1] + offset) ← R[rs2]
beq rs1, rs2, offset SB 0x63 0x0 if(R[rs1] == R[rs2])
 PCPC + {offset, 1b'0}
bne rs1, rs2, offset 0x1 if(R[rs1] != R[rs2])
 PCPC + {offset, 1b'0}
blt rs1, rs2, offset 0x4 if(R[rs1] < R[rs2])
 PCPC + {offset, 1b'0}
bge rs1, rs2, offset 0x5 if(R[rs1] >= R[rs2])
 PCPC + {offset, 1b'0}
bltu rs1, rs2, offset 0x6 if(U(R[rs1]) < U(R[rs2]))
 PCPC + {offset, 1b'0}
bgeu rs1, rs2, offset 0x7 if(U(R[rs1]) >= U(R[rs2]))
 PCPC + {offset, 1b'0}
auipc rd, offset U 0x17 R[rd] ← PC + {offset, 12b'0}
lui rd, offset 0x37 R[rd] ← {offset, 12b'0}
jal rd, imm UJ 0x6f R[rd] ← PC + 4
PCPC + {imm, 1b'0}

The pseudo-instructions are:

Pseudo-instruction Format Uses
Branch on Equal to Zero beqz rs1, label beq
Branch on not Equal to Zero bnez rs1, label bne
Jump j label jal
Jump Register jr rs1 jalr
Load Address la rd, label auipc, addi
Load Immediate li rd, immediate lui, addi
Load Word at address of Label lw rd, label auipc, lw
Move mv rd, rs1 addi

For further reference, here are the bit lengths of the instruction components.

R-TYPE funct7 rs2 rs1 funct3 rd opcode
Bits 7 5 5 3 5 7

I-TYPE imm[11:0] rs1 funct3 rd opcode
Bits 12 5 3 5 7

S-TYPE imm[11:5] rs2rs1 funct3 imm[4:0] opcode
Bits 7 5 5 3 5 7

SB-TYPE imm[12] imm[10:5] rs2 rs1 funct3 imm[4:1] imm[11] opcode
Bits 1 6 5 5 3 4 1 7

U-TYPE imm[31:12] rd opcode
Bits 20 5 7

UJ-TYPE imm[20] imm[10:1] imm[11] imm[19:12] rd opcode
Bits 1 10 1 8 5 7

Getting Started [<<] [<] [>]

Step 0: Obtaining the Files

  1. Clone your p1 repository from gitlab. You may want to change http to https.
  2. In the repository add a remote repo that contains the framework files:
    git remote add framework https://autolab.sist.shanghaitech.edu.cn/gitlab/cs110_23s/p1.1_framework.git (or change to http)
  3. Go and fetch the files:
    git fetch framework
  4. Now merge those files with your master branch:
    git merge framework/master
  5. The rest of the git commands work as usual.

Step 1: Building Blocks

Finish the implementation of translate_reg() and translate_num() in src/translation_utils.c.

You need to fill in the blank in translate_reg() since it is incomplete for some register translations. You can find register numbers on the RISC-V Green Sheet (PDF). Unfortunately, there are no built-in switch statements for strings in C, so an if-else ladder is the way to compare multiple strings.

For translate_num(), you should use the library function strtol() (documented here). translate_num() should translate a numerical string (either decimal or hexadecimal) into a signed number, and then check to make sure that the result is within the bounds specified. If the string is invalid or outside of the bounds, return -1.

Step 2: Symbol Table

Implement a data structure and interface to store symbol name-to-address mappings in src/tables.c.

Multiple SymbolTable's may be created at the same time, and each must resize to fit an arbitrary number of entries (so you should use dynamic memory allocation). You may design the data structure in any way you like, as long as you do not change the function definitions. A SymbolTable struct has been defined in src/tables.h, and you may use the existing implementation or create your own if that feels more intuitive. Feel free to declare additional helper methods. See src/tables.c for details.

In add_to_table(), you cannot simply store the character pointer that was given, as it could point to a temporary array. You must store a copy of that string instead. You should use the helper functions defined in src/tables.c whenever appropriate.

You must make sure to free all memory that you allocate. See Valgrind for more information.

Step 3: Write Instruction

Implement write_instruction() in src/translate.c. The RISC-V Green Sheet (PDF) will again be helpful, and so will bitwise operations.

write_instruction() should write instructions to basic code and hexadecimal format. Note that the function is incomplete. You must first fix the funct fields before implement the rest of the function. You will find the translate_reg(), translate_num(), write_inst_hex(), write_inst_rtype(), write_inst_stype() write_inst_sbtype() write_inst_utype() and write_inst_ecall() functions helpful in this step (all defined in translate_utils.h).

Some instructions may also require the symbol, which is given by the symtbl pointer.

Update (2023/03/03): As long as in our project, only SB-type and UJ-type require the symbol. Since most offsets and immediates can be expressed using labels in Venus, you are encouraged to have a try on this but this will not be enforced in our grading. You can keep the SymbolTable argument only for SB-type and UJ-type and modify the rest write_*type() accordingly.

This step may require writing a lot of code, but the code should be similar in nature, and therefore not difficult. The more important issue is input validation -- you must make sure that all incoming arguments are valid. If an input is invalid, you should NOT write anything to output and return -1 directly.

Use your knowledge about RISC-V instruction formats and think carefully about how inputs could be invalid. You are encouraged to use Venus as a resource. Do note that Venus has more pseudo-instruction expansions than our assembler, which means that instructions with invalid arguments for our assembler could be treated as a pseduoinstruction by Venus. Therefore, you should check .text segment by yourselves after assembling to make sure that the instruction has not been expanded by Venus.

Caveat
If a branch offset cannot fit inside the immediate field, you should treat it as an error.

Step 4: Pseudo-instruction Expansion

Implement translate_inst() in src/translate.c, which should perform pseudo-instruction expansion.

The load immediate instruction normally gets expanded into an lui-addi pair. However, an optimization can be made when the immediate is small. If the immediate can fit inside the imm field of an addi instruction, we will use an addi instruction instead. You are not required to perform other optimizations.

Also, make sure your pseudo-instruction expansions do not produce any unintended side effects and are the same with Venus in normal case. You are required to check errors on the pseudo-instructions (see src/translate.c for details). If there is an error, do NOT write anything to the intermediate file, and return 0 to indicate that 0 lines have been written.

Caveat
Although jump and link and jump and link register are not pseudo-instructions themselves, the short-hand format of these two instructions are pseudo-instructions, i.e. jal label and jalr rs1. You should also expand them to the form of jal rd label and jalr rd rs1 imm.

Caveat
For la rd label and lw rd label, observe the corresponding basic code in Venus, think about how it is calculated.

Putting It All Together [<<] [<] [>]

Implement pass_one() and pass_two() in assembler.c.

In the first pass, the assembler will strip comments, add labels to the symbol table, construct data segments, and write assembly code into an orginal file. In the second pass, the assembler will read the original file and symbol table, translate the instructions into machine code using the symbol table, and write it to basic file and machine file.

Afterwards, the symbol table will be written to the output file as well, and we have finished this part for you :).

Notice
Before you get down to pass_two(), read the documentation of fgets() and strtok() and understand how they work.

It will be easier to implement pass_two() first. The comments in the function will give you a more detailed outline of what to do, as well as what assumptions you shall make. Your program should not exit if a line contains an error. Instead, keep track of whether any errors have occured, and if so, return -1 at the end. pass_one() should be structured similarly to pass_two(), except that you will also need to parse out comments and labels and distinguishing segments. You will find the skip_comment() and add_if_label() functions useful.

As an aside, our parser is much more lenient than an actual RISC-V parser. Building a good parser is outside the scope of this course, but we encourage you to learn about finite state automata if you are interested.

Line Numbers and Byte Offsets

In parsing, you will need to keep track of two kinds of numbers, the line number and the byte offset of the current instruction or data.

Line numbers start at 1, and include whitespace. The byte offset refers to how far away the current instruction or data is from the start address (TEXT_BASE or DATA_BASE in types.h), and does NOT include whitespace. You can consider the byte offset as where each instruction will be if the instructions were loaded into memory starting at address 0. See the example below.

The address of a label is the sum of the byte offset and the start address of segment (TEXT_BASE + DATA_BASE). e.g. In the example below, L1 has an address of 4+DATA_BASE, L2 has an address of 14+DATA_BASE, L3 has an address of 4+TEXT_BASE, L4 has an address of 8+TEXT_BASE

An example of line number and byte offset
Line # Byte Offset Input File
1 0 .data
2 0    .word 0x0e37a2c8
3 4 L1:
4 4    .byte 0xf2
5 5    .half 0xa8ce
6 7    .word 0x14e7bda0
7 11    .byte 0x2c 0xcd 0x72
8 14 L2: .half 0xc37
9 0 .text
10 0     addi t0 a0 0
11 4 L3: lw t1 0(t0)
12 8 # This is a comment
13 8 L4:
14 8     ori t1 t1 0xABCD
15 12     addi t1 t1 3
16 16
17 16     bne t1 a2 L2

Error Handling

If an input file contains an error, your assembler is only required to print the correct error messages. The contents of your .int and .out files are not considered.

There are two kinds of errors you may encounter: Errors with instructions and errors with labels. Error checking of labels is done for you by add_if_label(). However, you are still required to record that an error has occurred so that pass_one() can return -1.

In pass_one(), errors with instructions can be raised by 1) write_original_code() or 2) the instruction having too many arguments. In pass_two(), errors with instructions will only be raised by translate_inst(). Both write_original_code() and translate_inst() should return a special value (0 and -1 respectively) in the event of an error. You will need to detect whether an instuction has too many arguments yourself in pass_one().

Whenever an error is encountered in either pass_one() or pass_two(), record that there is an error and move on. Do not exit the function prematurely. When the function exits, return -1.

For information about testing error message, see Error Message Testing.

Testing [<<] [<] [>]

You are responsible for testing your code. While we have provided a few test cases, they are by no means comprehensive. Fortunately, you have a variety of testing tools at your service.

Valgrind

You should use Valgrind to check whether your code has any memory leaks. We have included a file, run-valgrind, which will run Valgrind on any executable of your choice. If you get a permission denied error, try adding the execute permission to the file:

chmod u+x run-valgrind

Then you can run Valgrind by typing:

./run-valgrind <whatever program you want to run>

For example, if you wanted to see whether running the following command would cause any memory leaks,

./riscv assembler-p1 in/labels.s -d out/labels.data -s out/labels.symbol -o labels.original

You should run ./riscv assembler-p1 in/labels.s -d out/labels.data -s out/labels.symbol -o labels.original.

Venus

Since you're writing an assembler, why not refer to an existing assembler? Venus is a powerful reference for you to use, and you are encouraged to write your own RISC-V files and assemble them using Venus.

Caveat
In some cases, the output of Venus will differ from the specifications of this project. You should always follow the specs, except for Load Word at address of Label. This is because Venus 1) supports more pseudo-instructions, 2) has slightly different pseudo-instruction expansion rules, and 3) acts as an assembler and linker. You should always examine the assembled instructions carefully when testing with Venus.

Diff

diff is a utility for comparing the contents of files. Running the following command will print out the differences between file1 and file2:

diff <file1> <file2>

To see how to interpret diff results, click here. We have provided some sample input-output pairs (again, these are not comprehensive tests) located in the input and out/ref directories respectively. For example, to check the output of running test/part1/pass1/in/labels.s on your assembler against the expected output, run:

./riscv assembler $PASS1_IN/labels.s -d $PASS1_OUT/labels.data -s $PASS1_OUT/labels.symbol -o $PASS1_OUT/labels.original -b $PASS2_OUT/labels.basic -t $PASS2_OUT/labels.text
diff $PASS1_OUT/labels.data $PASS1_REF/labels.data
diff $PASS1_OUT/labels.symbol $PASS1_REF/labels.symbol
diff $PASS1_OUT/labels.original $PASS1_REF/labels.original
diff $PASS2_OUT/labels.basic $PASS2_REF/labels.basic
diff $PASS2_OUT/labels.text $PASS2_REF/labels.text

if we assume the following variables.
  PASS1_IN=test/part1/pass1/in
  PASS1_OUT=test/part1/pass1/out
  PASS1_REF=test/part1/pass1/ref
  PASS2_OUT=test/part1/pass2/out
  PASS2_REF=test/part1/pass2/ref

Running the Assembler [<<] [<] [>]

First, make sure your assembler executable is up to date by running make.

By default, the program gives help message if you do not specify any arguments. The first pass reads an input file and translates it into an intermediate file. The second pass reads the intermediate file and translates it into an output file. As illustrated below.

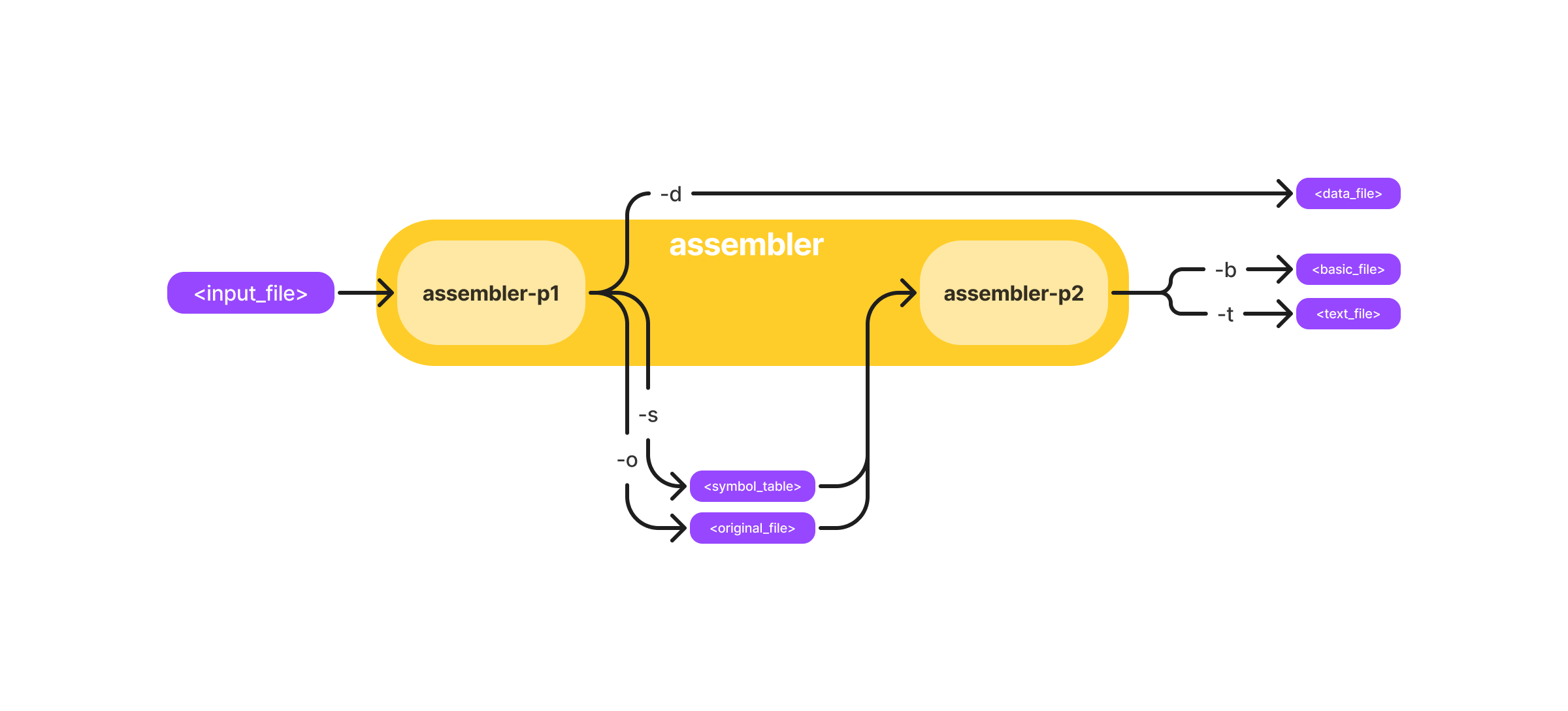

The layout

Run all

To run both passes, type:

./riscv assembler <input_file> -d <data_file> -s <symbol_table_file> -o <original_file> -b <basic_file> -t <basic_file>

You can also simply omit -s <symbol_table_file> and -o <original_file> during your test, since they are just intermediate files for pass 2:

./riscv assembler <input_file> -d <data_file> -b <basic_file> -t <basic_file>

Run pass 1

Alternatively, you can run only a single pass, which may be helpful while debugging. To run only the first pass, use the assembler-p1 option:

./riscv assembler-p1 <input_file> -d <data_file> -s <symbol_table_file> -o <original_file>

Run pass 2

To run only the second pass, use the assembler-p2 option. Note that when running pass two only, your symbol table will be empty since labels were stripped in pass_one(), so it may affect your branch instructions.

./riscv assembler-p2 <symbol_table_file> <original_file> -b <basic_file> -t <text_file>

Error Message Testing

When testing cases that should produce error messages, you may want to use the -log flag to log error messages to a text file. The -log flag should be followed with the location of the output file (WARNING: old contents will be overwritten!), and it can be used with any of the three modes above.

We have provided two tests for error messages, one for errors that should be raised during pass_one(), and one for errors that should be raised during pass_two(). To test for pass_one() errors, assemble input/p1_errors.s with the -p1 flag and verify that your output matches the expected output:

./riscv assembler-p1 test/part1/pass1/in/p1_error.s -l test/part1/pass1/out/p1_error.log
diff test/part1/pass1/out/p1_error.log test/part1/pass1/ref/p1_error.log

To test for pass_two() errors, assemble input/p2_errors.s running both passes:

./riscv assembler-p2 test/part1/pass2/in/p2_error.symbol test/part1/pass2/in/p2_error.original -l test/part1/pass2/out/p2_error.log
diff test/part1/pass2/out/p2_error.log test/part1/pass2/ref/p2_error.log

Your intermediate and output files (.int and .out files) do NOT need to match the reference output if the input file contains an error.

Notices on Grading [<<] [<] [>]

How many lines of code I need to write? [<<] [<] [>]

Here is a summary of the solution code. The final row gives total lines inserted and deleted; a changed line counts as both an insertion and a deletion. However, there are many possible solutions and many of them may differ.


      part1/assembler.c        	| 167 +++++++++++++++++++++++++++++++++++++++++++++++++++++++
      part1/tables.c            |  83 ++++++++++++++++++++++++++++
      part1/tables.h            |   2 +
      part1/translate.c         | 319 +++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++
      part1/translate_utils.c   |  82 ++++++++++++++++++++++++++-
      5 files changed, 651 insertions(+), 2 deletions(-)

Submission [<<] [<] [>]

  1. Create a text file autolab.txt. The first line has to be the name of your p1.1 project in gitlab. So p1.1_email1_email2.
  2. The following lines have to contain a long, random secret. Commit and push to gitlab. We will test the length and randomness of this secret by running tar -cjf size.tar.bz2 autolab.txt.
  3. When you want to run the autograder in autolab, you have to upload your autolab.txt. Autolab will clone, from gitlab, the default branch (in most case is "main" branch), of the repo specified in the autolab.txt you uploaded and then continue grading only if all of these conditions are met:
    1. The autolab.txt you uploaded and the one in the clone repo are identical.
    2. The size of the generated size.tar.bz2 is at least 1000B.
    3. Only the files from the framework are present in the cloned repo.
  4. Autolab will replace all files except *.c, *.h with the framework versions before compiling your code.

Autolab Results [<<] [<]

tests 0-xx stands for results for pass 1. The cases are listed below.

Test Case Number Point of Interest
0-{00,03,04,05,07,08,12,13,15,17} Complex
0-{01,02} Arithmetic calculation
0-06 Data
0-09 Immediates
0-10 Labels
0-11 Logic calculation
0-14 Error handling
0-16 Pseudo-instruction

tests 1-xx stands for results for pass 2. The cases are listed below.

Test Case Number Point of Interest
1-{00,03,06,07,11} Complex
1-{01,02} Arithmetic calculation
1-04 Comments
1-05 Data
1-08 Labels
1-09 Logic calculation
1-10 Error Handling

tests x-xx-mem stands for memory leak detection test. All common tests are enforced with a memory leak detection test.
